Product Description:
Magnesium anodes are used to achieve cathodic protection of
underground pipelines and other underground structures such as tank
bottoms, vessels, valves and fire hydrants. Suitable for use in
soils, slurries and fresh water.
Often used for temporary cathodic protection of newly installed
structures.
Standard: ASTM G-97
| Chemical compositions of cast magnesium anode (%) |
| Element | High potential | AZ63B | AZ63C | AZ63D |
| Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
| Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
| Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
| Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
| Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
| Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
| Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
| Others each | 0.005 | --- | --- | --- |
| Others total | 0.30 | 0.30 | 0.30 | 0.30 |
| Mg | Balance | Balance | Balance | Balance |
Specificantion of “S”shaped Mg sacrificed anodes
| Model | Weight Kg (LB) | Specification of anodes Inch (mm) |
| A | B | C |
| 3S3 | 1.4(3) | 3(76.2) | 3(76.2) | 4.5(114.3) |
| 5S3 | 2.3(5) | 3(76.2) | 3(76.2) | 7.5(190.5) |
| 9S2 | 4.1(9) | 2(50.8) | 2(50.8) | 27(685.8) |
| 17S2 | 7.7(17) | 2(50.8) | 2(50.8) | 51(1295.4) |
| 17S3 | 7.7(17) | 3(76.2) | 3(76.2) | 25.5(647.7) |
| 20S2 | 9.1(20) | 2(50.8) | 2(50.8) | 60(1524.0) |
| 32S3 | 14.5(32) | 3(76.2) | 3(76.2) | 45(1143.0) |
| 32S5 | 14.5(32) | 5(127.0) | 5(127.0) | 21(533.4) |
| 40S3 | 18.1(40) | 3(76.2) | 3(76.2) | 60(1524.0) |
| 48S5 | 21.8(48) | 5(127.0) | 5(127.0) | 31(787.4) |
| 60S4 | 27.2(60) | 4(101.6) | 4(101.6) | 60(1524.0) |
| 9S3 | 4.1(9) | 3(76.2) | 3(76.2) | 13.5(342.9) |
Specificantion of “D”shaped Mg sacrificed anodes
| Model | Weight Kg (LB) | Specification of anodes Inch (mm) |
| A | B | C |
9D2 | 4.082(9) | 2 3/4(69.9) | 3(76.2) | 21 5/8(549.3) |
14D2 | 6.350(14) | 2 3/4(69.9) | 3(76.2) | 33 1/2(850.9) |
20D2 | 9.072(20) | 2 3/4(69.9) | 3(76.2) | 47 3/4(1212.9) |
9D3 | 4.08(9) | 3 1/2(88.9) | 3 3/4(95.3) | 13 7/8(352.4) |
17D3 | 7.711(17) | 3 1/2(88.9) | 3 3/4(95.3) | 25 1/4(641.4) |
32D5 | 14.515(32) | 5 1/2(139.7) | 5 3/4(146.1) | 19 7/8(504.8) |
48D5 | 21.772(48) | 5 1/2(139.7) | 5 3/4(146.1) | 30 1/8(765.2) |
1.5Kg | 1.5(3.5) | 3 3/20(80.0) | 2 3/4(70.0) | 7 1/2(190.0) |
2.5Kg | 2.5(5.5) | 3 3/20(80.0) | 2 3/4(70.0) | 11 4/5(300.0) |
| Model | Open-circuit voltage (-v) | Close-circuit voltage (-v) | actual capacitance (A.H/G) | Current efficiency (%) |
| Mg anode with low potential AZ63 | 1.50-1.55 | 1.45-1.5 | ≥1.105 | ≥50 |
| Mg anode with high potential Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
Applications:

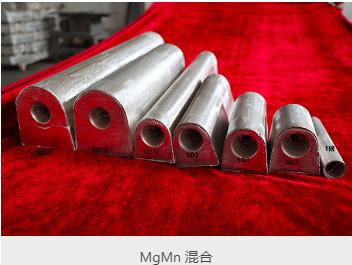

The Magnesium Anodes are available in D Shape, S Shape, and C Shape
Bar which can be customized according to the specific requirements
of the customer. The Surface of the product is smooth which helps
in easy installation. The life of the product can be customized
according to the specific requirements of the customer.
These Magnesium Anodes are widely used for corrosion protection in
oil pipelines, gas pipelines, water supply systems, marine
structures, underground metal structures, and many other
industries. It is available in two different weights, 7.7 Kgs, and
14.5 Kgs soil anodes which make it a versatile product for
different applications.
The packaging of the product is done on pallets which ensures the
safety of the product during transportation. The delivery time of
the product is 14 days and the payment terms are T/T and L/C. The
minimum order quantity for the product is 100 kgs and the price is
discussed with the customer.
The Magnesium Manganese alloy used in the product makes it a
high-quality corrosion-resistant product. The supply ability of the
product is 1000 mt per month which makes it a reliable source for
large-scale industries.
Overall, HB Magnesium Anode HP is a premium quality product that
offers reliable corrosion protection for various industries. Its
customizable life, shape, and weight make it a versatile product
for different applications. Its smooth surface, easy installation,
and reliable supply ability make it a top choice for corrosion
protection.
Customization:
We can do it according to your drawing or request.
Support and Services:
Our Magnesium Anode product comes with top-notch technical support
and services to ensure optimal performance and longevity. Our team
of experts is available to answer any technical questions or
concerns you may have regarding the installation, maintenance, or
operation of the product. We also offer a range of services,
including installation assistance, performance monitoring, and
maintenance recommendations to help you get the most out of your
Magnesium Anode. Contact us today to learn more about our technical
support and services for the Magnesium Anode.
Packing and Shipping:
The Magnesium Anode product will be packaged in a sturdy cardboard
box with proper cushioning to ensure safe delivery. The anode will
be securely placed in a plastic bag to prevent any damage or
corrosion during transportation.
Shipping:
The Magnesium Anode product will be shipped via standard ground
shipping. Shipping times may vary depending on the destination.
Customers will be provided with a tracking number once the product
has been shipped.
FAQ:
Q: What is the brand name of the Magnesium Anode?
A: The brand name of the Magnesium Anode is HB (High Broad).
Q: What is the model number of the Magnesium Anode?
A: The model number of the Magnesium Anode is Anode HP.
Q: Where is the Magnesium Anode manufactured?
A: The Magnesium Anode is manufactured in China.
Q: What certifications does the Magnesium Anode have?
A: The Magnesium Anode is certified with ROHS, REACH, and ISO.
Q: What is the minimum order quantity for the Magnesium Anode?
A: The minimum order quantity for the Magnesium Anode is 100 kgs.
Q: What is the price of the Magnesium Anode?
A: The price of the Magnesium Anode can be discussed.
Q: What are the packaging details for the Magnesium Anode?
A: The Magnesium Anode is packaged on pallets.
Q: What is the delivery time for the Magnesium Anode?
A: The delivery time for the Magnesium Anode is 14 days.
Q: What are the payment terms for the Magnesium Anode?
A: The payment terms for the Magnesium Anode are T/T and L/C.
Q: What is the supply ability of the Magnesium Anode?
A: The supply ability of the Magnesium Anode is 1000 mt per month.
