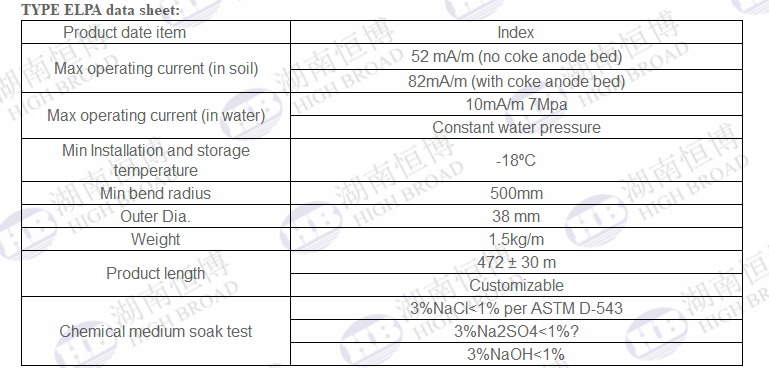

ASTM B348 Grade Mixed Metal Oxide flexible anode with coke backfilled, Flexible Mmo Ti Mixed Metal Oxide

Applications for cathodic protection include:

• Aboveground storage tanks
• Underground metallic storage tanks
• Water storage tanks, both soil side and water-contact surfaces
• Underground metallic pipelines
• Power plant structures: intake, discharge, circulating water, fuel systems
• Marine structures
• NACE (National Association of Corrosions Engineers) Compliant Testing
• Field Gas Distribution System Inspections
• Master Meter System Federal Compliance Reviews
• Master Meter System State Compliance Reviews
• Construction Gas Distribution System Inspections
• Pipeline Integrity Inspections
• Pipeline Location/Survey Inspections
• Gas Distribution System Welding Inspectors
• Civil Inspections
• Utility Inspections
• Electrical and Instrumentation Inspections

MIXED METAL OXIDE ACTIVATED TITANIUM WIRE PIGGYBACK ANODES Activation: Noble Mixed Metal Oxides consisting of IrO2 and Ta2O5 Substrate Material: Titanium to ASTM Grade 1 or 2 Working Environment: Evolution of O2, Cl2 or a combination of both Nominal Design Life: Typically 20 years when operating at an anode current density of 100 A/m2 – coating loading can be adjusted for any combination of current output and design life. Dimensions of Piggyback Anode: Dimension of Ti Wire: 1.5 mm dia. or 3 mm dia. Current Output of Piggyback : 1.5 mm dia. Ti Wire – 0.5 A/m ; 3.0 mm dia. Ti Wire – 1A/m Lengths: From 1 m to 50 m* *Longer lengths are available on request Header Cable: Typically 10 mm2 or 16 mm2 XLPE/PVC connected to the MMO/Ti wire anode every 10 m, header cable or spacing between connections can be adjusted to suit the particular soil resistivity of operation Cable Tail: a cable tail, typically of 1 m to 5 m can be provided at one end or both ends of the Sock Anode to allow connection to the power feed from the TR
