Prepackaged Magnesium Anode With Cable And Backfilled High Potential Standard Potential

Ask Lasest Price
Brand Name :	High Broad
Model Number :	HP AZ
Certification :	ISO
Price :	USD, Discussed
Payment Terms :	T/T , Paypal , West Union
Supply Ability :	20mt per week
Delivery Time :	14 days

Add to Cart

Product Details
Company Profile

Prepackaged Magnesium Anode With Cable And Backfilled High Potential Standard Potential

Prepackaged Magnesium anode with Cable and backfilled 17 lbs 32 lbs 9 lbs High potential Standard potential

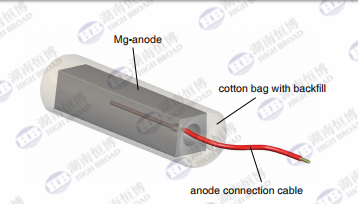

PREPACKAGED MAGNESIUM ANODE

Bare Mg anodes could be supplied after being prepackaged. The bare Mg anodes will be assembled with cable and sealed with epoxy resin and packaged in cotton bags.

As the prepackaged anodes are buried under the ground. If there is any harmful element in the backfill of prepackaged anodes, this element will leak to the earth and groundwater when the anode is in use, which will pollute the environment.

We prepackaged anodes are made of recyclable materials or easily decomposable materials and the content of harmful elements in the backfill is lower than safety standards, which will not bring any pollution to the surrounding.

The available cables type(insulation/sheath) are:PVC/PVC,XLPE/PVC, HMWPE with any required size.

Backfill Element
Gypsum	75%
Bentonite	20%
Sodium Sulphate	5%
Harmful Elements
Cadmium (Cd)	≤1ppm
Arsenicum (As)	≤1ppm
Mercury (Hg)	≤1ppm
Phosphorus (Pb)	≤10ppm

Feature

High purity raw material

rigid process control

automatic production

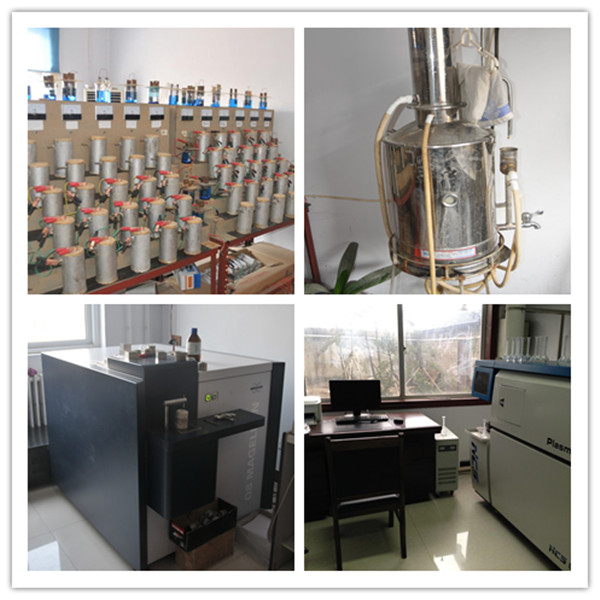

advanced testing facilities

Dimension and weight

Item No.	Part No.	Diameter (mm)	Length (mm)	Weight (kg)
1	MG-5D2	127	450	8.2
2	MG-9D2	140	690	16
3	MG-9D2-1	130	810	16
4	MG-20D2	140	1650	38
5	MG-5D3	160	300	9.0
6	MG-9D3	160	550	16
7	MG-17D3	160	780	22
8	MG-35D5	200	680	30
9	MG-48D5	205	960	45
10	MG-R50	160	480	13.5
11	MG-R77	175	640	22
12	MG-R100	175	710	25
13	MG-R145	200	650	30
14	MG-R273	175	1650	58
15	MG-5S3	160	350	10
16	MG-9S3	160	550	16
17	MG-17S3	160	800	23
18	MG-32S5	195	700	30
19	MG-48S5	200	1000	45

Why Choose Us

1). Over 20 years anode production experience;
2). Three workshops and strong technical teams;
3). Complete production processing line, from raw materials, mechanical process, surface treatment, electro-deposition, also with
deep processing capacity.
4). ISO9001: 2008, SGS, DNV GL standardize corporate;
5). Multi business scope, various types of products, ensures market shares
