Corrosion Protection Magnesium Anode Rods Magnesium Sacrificial Anode Rod

Corrosion Protection Magnesium Sacrificial Anode Rod

1.Product information

Magnesium anode is used in technical method of electrochemistry cathode protection. theory is from that connect with the protected metal body ,with the exhausting and dissolving of negative metal material or alloy ,protective curer body will be protected from corrosion . Mg anode can produce higher quality potential power, is ideal sacrificial anode materials.

Technology :

Extruded Magnesium Anode

Cast Magnesium Anode

Standard: ASTM B 843-1995

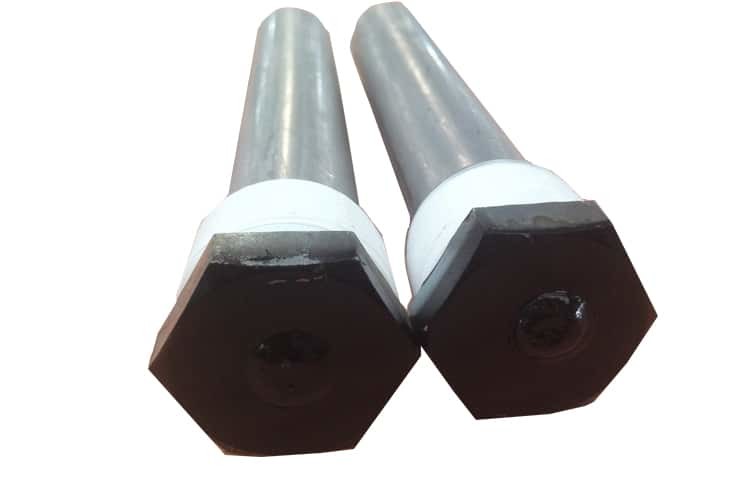

2.Anode detail image

Corrosion Protection Magnesium Anode Rods Magnesium Sacrificial Anode Rod

We can surely produce Magnesium Rod as per your drawing !

Pls contact us for more details !

3. Chemical Composition

Type	Alloy Element				Impurity Elements(Max)
	Al	Zn	Mn	Mg	Fe	Cu	Ni	Si	Other
									Each	Total
MGAZ63B	5.3-6.7	2.5-3.5	0.15-0.60	Balance	0.003	0.01	0.001	0.08	_	0.30
MGAZ31B	2.7-3.5	0.6-1.4	0.2-1.0	Balance	0.003	0.01	0.001	0.08	0.05	0.30

4. Dimensions

Anode Dia(mm)	Core Dia(mm)	Screw	Unit weight(g/cm)
φ13.97	Φ2.0	NPE-ASMT/BSP/G/R	2.83
Φ19.05	Φ3.4	NPE-ASMT/BSP/G/R	5.66
Φ21.34	Φ3.4	NPE-ASMT/BSP/G/R	6.85
Φ26.67	Φ3.4	NPE-ASMT/BSP/G/R	10.42
Φ33.40	Φ3.4	NPE-ASMT/BSP/G/R	16.08
Φ39.65	Φ4.8	NPE-ASMT/BSP/G/R	23.07
Φ51.40	Φ4.8	NPE-ASMT/BSP/G/R	37.96
*Customized Size Available

Delivery time : 5-15days according to orders quantity .

Shipping way : By air ,by sea ,by railway ,by express and so on , we can send goods according to customers' requirement .
