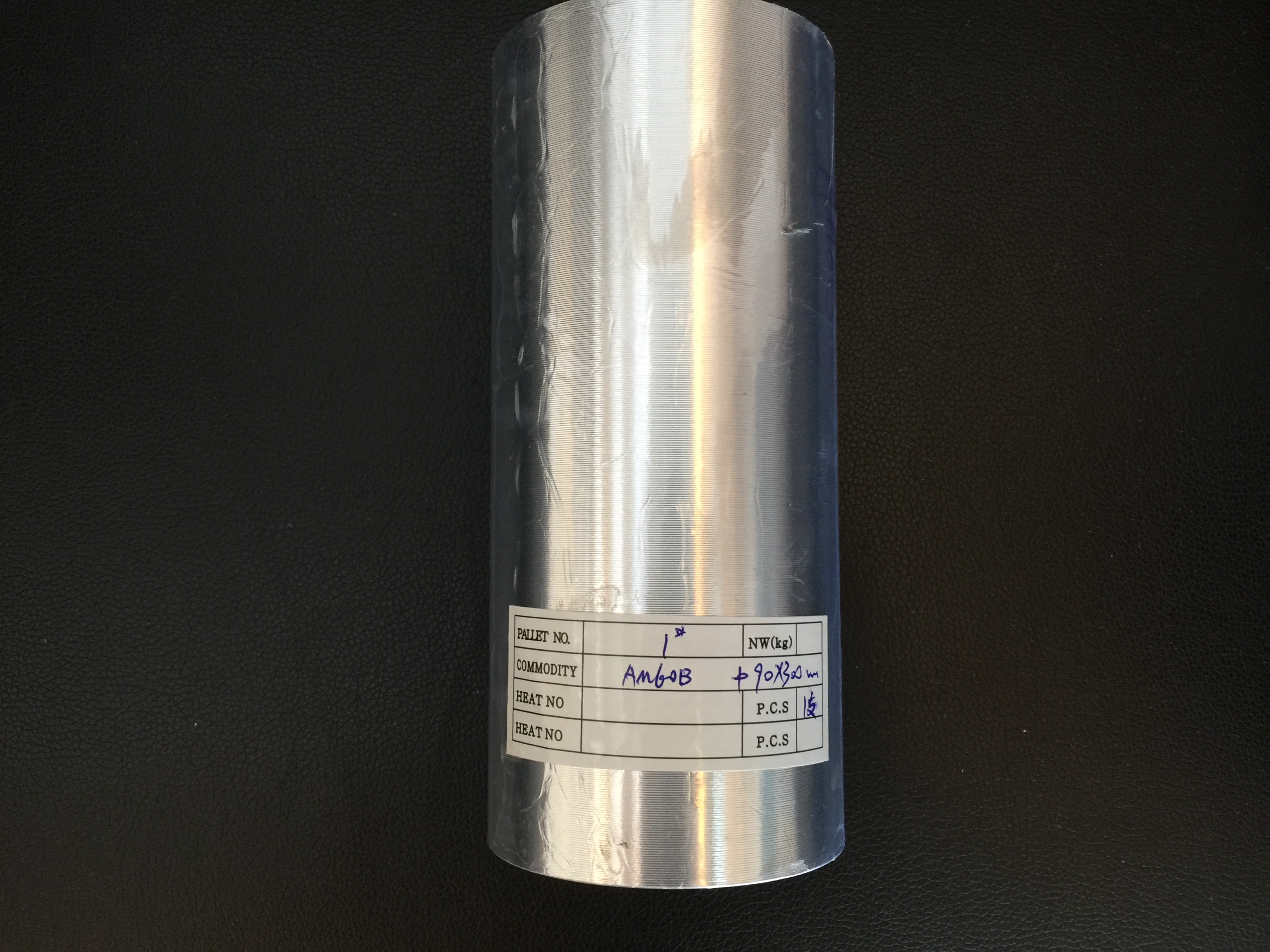

AM60B Magnesium Alloy Bar / Magnesium Alloy Billet
Manufacture ZK60A-T5 manesium alloy rod extruded zk60a magnesium
bar zk60a magnesium billet ASTM B107/B107M-13
| Grade | AM60B |
| Al% | 5.6-6.4 |
Mn%
| 0.26-0.50 |
Cu%
| 0.008 max |
Fe%
| 0.004 max |
Si%
| 0.05 max |
Zn%
| 0.20 max |
Ni%
| 0.001 max |
Others
| 0.01 max |
Mg
| balance |
Standard:
ASTM B80, AMS 4472 , GB/T19078-2006
Dimensions:
Diameter : 10 - 800mm max
Length : 50 - 8500mm max
Application:
Semi-casting large bar and extruded
We produce magnesium alloy bar by semi-casting and under around
water colder during casting process.Making good grain perfect.So
ensuring perfect inner quality without any flaw,slag, hole, burrs
or scratches.
Our strength is to provide CUSTOMIZED magnesium alloys according to customers
request.
Magnesium alloy can be added various chemical / rare earth elements
: Y, La, Ce,Mn, Zr, Gd,Nd,Zn as per requested.
Shape:
Semi continuous Cast billets , Cast bars, Extruded cylinder bars,
Extruded Plates, Extruded Tubes
Chemical Composition
| AZ31B | ASTM B 107/B 107M |
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Ca | Others,total |
| Min% | 2.50 | 0.60 | 0.20 | | | | | | |
| Max% | 3.50 | 1.40 | 1.00 | 0.10 | 0.005 | 0.05 | 0.005 | 0.04 | 0.3 |
| ZK60A | ASTM B 107/B 107M |
| Elements | Zn | Zr | Others,total |
| Min% | 4.8 | 0.45 | |
| Max% | 6.2 | | 0.3 |
| AZ61A | ASTM B 107/B 107M |
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
| Min% | 5.80 | 0.45 | 0.15 | | | | | |
| Max% | 7.20 | 1.50 | 0.50 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 |
| AZ80A | ASTM B 107/B 107M |
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
| Min% | 7.80 | 0.20 | 0.12 | | | | | |
| Max% | 9.20 | 0.80 | 0.50 | 0.10 | 0.005 | 0.05 | 0.005 | |
| M1C | ASTM B 843 |
| Elements | Al | Si | Mn | Fe | Cu | Ni | Others,each | Others,total |
| Min% | | | 0.50 | | | | | |
| Max% | 0.01 | 0.05 | 1.30 | 0.03 | 0.02 | 0.001 | 0.05 | 0.3 |
We also provide various magnesium - rare earth master alloys :
MgMn,MgCa,NiMg,WE43,WE54,MgDy,MgEr,MgY,MgSc,MgZr,
MgCe,MgLa,MgGd,MgNd etc.
