Brand Name : | OEM |
Model Number : | OEM Custom-made high quality American standard C/D/S shape Mg anode , Zn anode, Al anode for cathodic protection |
Certification : | ASTM G-97, ISO, DNV |
Price : | negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal |
Supply Ability : | 300 Metric Ton/Metric Tons per Month |
Delivery Time : | 1 FCL:14 Days |
(1) Product: Magnesium Packaged Anode;Packaged Mg Anode;
(2) Material: Magnesium Alloy;
(3) Finish: Forge,Cast;
(4) Size:Standard or customized size;
(5) Standard:AZ63 or MGM1C;
(6) Characteristics: strong, stylish, durable, corrosion-resistant.

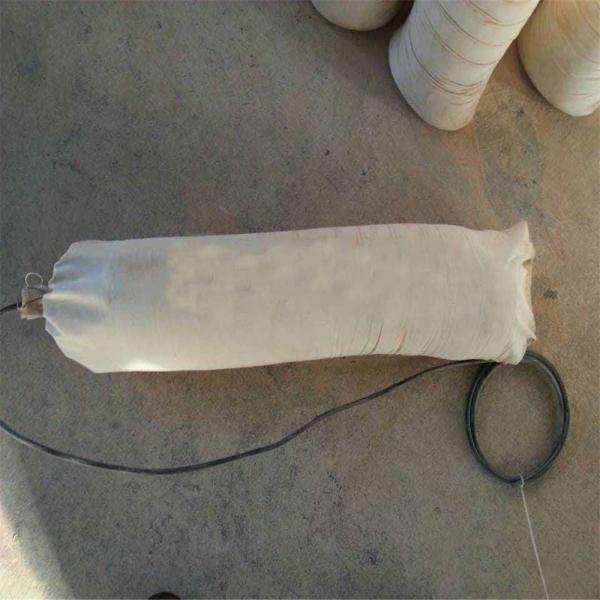

Pre-packaged Mg Anode are widely used in the Cathodic Protection(CP) industry.
- Anode assembly with cable, backfill, epoxy resin seal and
packaged in a cotton bag.
- Recyclable and easily decomposable materials.
- Environmentally safe. Harmful elements in backfill lower than
specified allowable limits.
- Composition of Backfill: Gypsum 75%, Bentonite 20%, Anhydrous
Sodium Sulphate 5%.
Backfill Pollutants Tolerance
Available Cabling Insulation/Sheath
• PVC/PVC, XLPE/PVC, HMWPE
Cable Size
• 6 mm2, 10 mm2, 16 mm2
Anode to Cable Connection Resistance
• 0.001 ohm max
Anode to Cable Pull Out Strength
• 5 x prepackage anode weight min
Application:
The corrosion of metal in salt or fresh water or in soil can be prevented by the use of galvanic anodes in a cathodic protection system. Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.
