ASTM G97 sacrificial magnesium anode Hipotential Cathodic protection

Ask Lasest Price
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal,Credit Card
Supply Ability :	5000MT/Year
Delivery Time :	1 work day
Brand Name :	HB High potention sacrificial magnesium anode manufacturers
Model Number :	HP AZ63C
Certification :	DNV High potention sacrificial magnesium anode manufacturers

Add to Cart

Product Details
Company Profile

ASTM G97 sacrificial magnesium anode Hipotential Cathodic protection

We are involved in cathodic protection field for over 15 years, we are the earliest company which begin to produce and export anodes abroad in China.

Our products are shipped worldwide, mainly to North American and Asia countries ,Middle East for over 3000mts per year. which are used in pipeline, oil company project , harbor, marine boat, civil construction project.

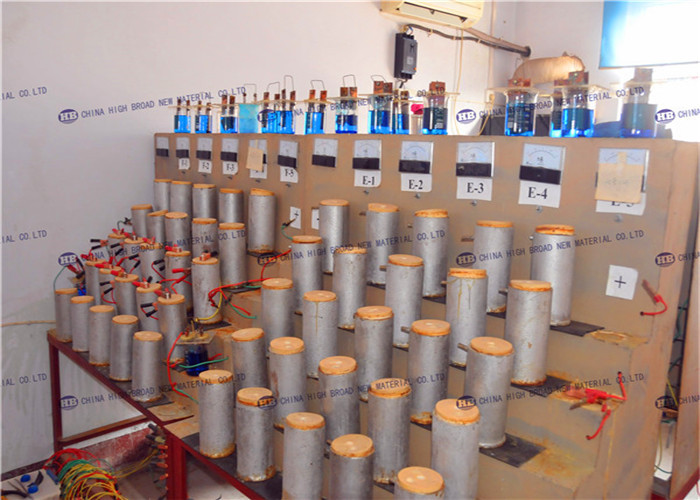

Our goods are tested by US lab named Anodes evaluation and proved to be in good quality. Basis on our own sources in plant, we can ensure good quality.

Our products line:

Mg anodes (ASTM-G97),

Zinc anodes (ASTM B418-95 US Military 18001K)

Al-Zn-In anodes (GAIII)

casting bar, wire, ribbon, rod ,backfilled etc.

Believe we can also well meet your demand. We are confident to become a top-ranked supplier to your company.

Specifications

• Item name: Magnesium sacrificial anode

• The advantage: AZ63, High Potential (Mg-Mn) The best quality and best price

• Raw materials: AZ31series,AZ63series and so on

The characteristic of sacrificial anode magnesium

1.High electrochemistry performance

2.Average anode consuming

3.Long using time

4.High unit power output

Application field

1.Corrosion protection for Electric water heater

2.Oil transportation and gas transmission in underground and fresh water

3.Line pipe for draining away water

4.Underground cable

5.Chemical industry

6.Communication

7.Dock and harbour

8.Boats and ships

9.Reservoir gate

Chemical Composition

Shop sign	Alloy element				Impurity element ,less than
Shop sign	Al	Zn	Mn	Mg	Fe	Cu	Ni	Si	Ca
AZ63	5.3-6.7	2.5-3.5	0.15-0.60	Balance	0.005	0.02	0.001	0.08	—
High Potential	≤ 0.05	≤ 0.03	1.20-2.0	Balance	0.005	0.02	0.001	0.08	0.04
MGM1C	≤0.01	—	0.50-1.3	Balance	0.01	0.01	0.001	0.05	—
MG	≤0.02	≤0.03	≤0.01	≥99.9%	0.005	0.004	0.001	0.01	—

Electrochemical Property

Shop sign	Open circuit potential	Closed circuit potential	Actual capacitance	Current efficiency
Shop sign	—V,Cu/CuSO4	—V,Cu/CuSO4	—(A·h/kg)	%
MGAZ63B	1.57-1.67	1.52-1.57	≥1210	≥55
High Potential	1.57-1.67	1.47-1.57	≥1210	≥55
MGM1C	1.77-1.82	1.64-1.69	≥1100	≥50

ASTM G97 sacrificial magnesium anode Hipotential Cathodic protection

Magnesium Anode for tank cathodic protection.

Primarily designed for tank interiors, tank anodes utilize a longitudinal steel strap core for bolting or welding to the steel surface.

Chemical Component

Type	Chemical Component
	Alloy element				Impurity not more than
	Al	Zn	Mn	Mg	Fe	Cu	Ni	Si
MGAZ1	5.3-6.7	2.5-3.5	0.15-0.6	balance	0.005	0.01	0.001	0.05
MGAZ2	2.7-3.5	0.7-1.3	0.15-0.6	balance	0.005	0.01	0.001	0.05
MGM	<0.05	<0.03	1.2-2.0	balance	0.005	0.02	0.001	0.05
MG	<0.02	<0.03	<0.01	>99.9	0.005	0.004	0.001	0.01

Electrochemical Performance

Type	open circuit potential		current efficiency		Producing electricity
	-V·Min		%·Min		(A·h)/g·Min
	3%NaCl Solution 3mA/cm2	Soil 0.03mA/ cm2	3%NaCl Solution 3mA/ cm2	Soil 0.03mA/ cm2	3%NaCl Solution 3mA/ cm2	Soil 0.03mA/ cm2
MGAZ1	1.55	1.50	55	50	1.20	1.10
MGAZ2	1.60	1.55	60	55	1.30	1.20
MGM	1.60	1.55	55	50	1.20	1.10
MG	1.65	1.60	50	45	1.10	1.00

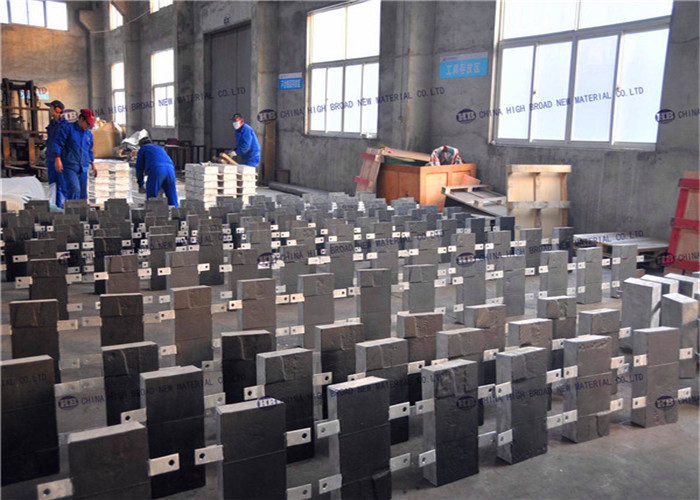

The common type of underground pipe line, the outerwall of storage tank and other underground metal structure

Type	Specification L(upper+down)H	(kg) Weight
MG-22	700×(130+150)×125	22.0
MG-14	700×(100+110)×105	14.0
MG-11	700×(90+100)×90	11.0
MG-8	700×(75+85)×80	8.0
MG-4	700×(55+60)×55	4.0
MG-2	350×(55+60)×55	2.0
