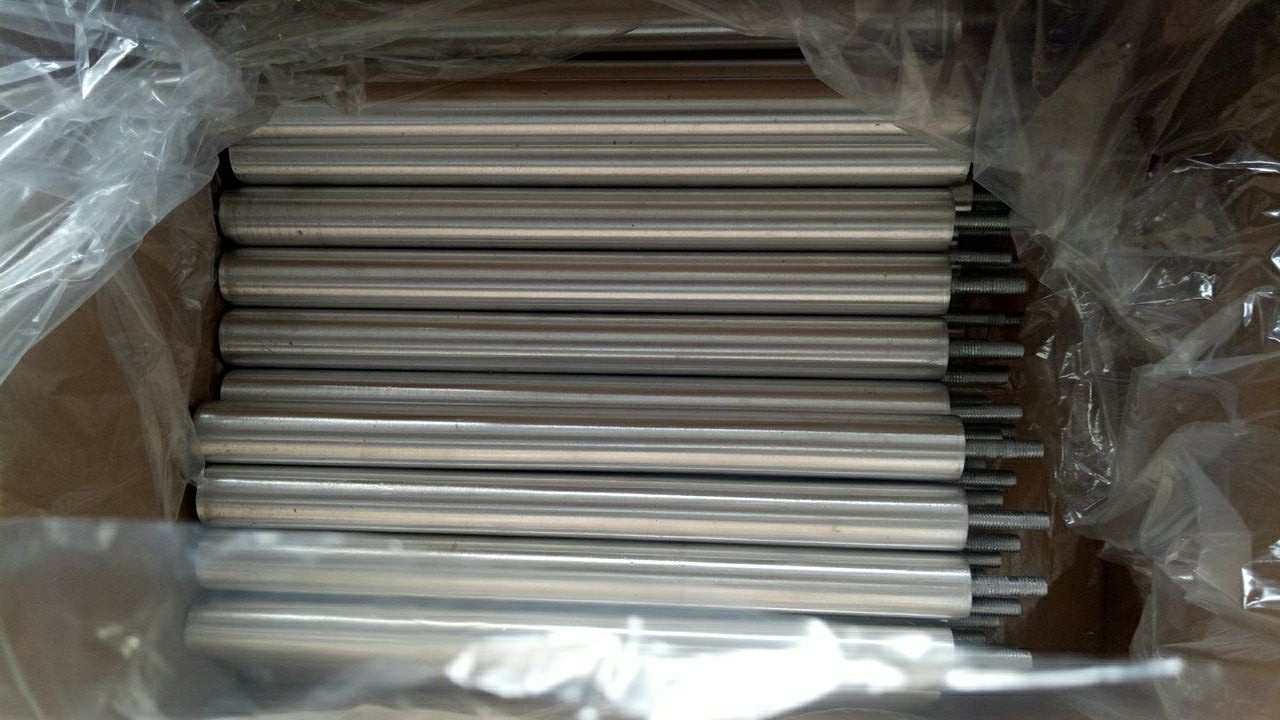

Extruded Magnesium Anode Rod for hot water heaters
Standard: ASTM B 843-1995
GB/T 17731-2004
Main Application:water heater,water container,per-polarization of
steel structure in seawater,gas pipe,anticorrosion of steel and
iron
structure where high resistant and eleistant (soil and
water)existed!
♦ Chemical compositions Extruded Magnesium Anode Rods :
| Type | Al | Zn | Mn | Fe | Cu | Ni | Si | Others | Mg |
| AZ31B | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | 0.005 | 0.01 | 0.001 | 0.1 | 0.3 | Balance |
| Mg-Mn | 0.01 | - | 0.5-1.3 | 0.03 | 0.02 | 0.001 | 0.05 | 0.3 | Balance |
♦ Electrochemical properties of Extruded Magnesium Rod Anodes:
| Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/g) | Current efficiency (%) |
| AZ31B | 1.50-1.55 | 1.45-1.50 | ≥1.105 | ≥50 |
| Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
* We can do according to customized size and requirements.
Preserve The Quality & Prolong The Life Of Your Hot Water Heater
With Our Premium Anode Rods!
Corrosion protection: extend the life of water heaters by attracting corrosive elements
in the water
Material: anode rod is made of magnesium RV water heater anode rod, and the
magnesium rods will be corroded faster but work and protect better
than aluminum rods
Application: 3/4 inch NPT threads anode rod fits for water heaters; If the rod
is mostly eaten away, replace it with a new one
Function: the exclusive rv anode rod absorbs the corrosive action caused by
hot water, and prolongs the life of water heater tanks; Unscrew the
anode rod to drain the tank; Always keep a spare one in your RV
Regular Type of Magnesium Rod:
threading: NPT 3/4"
Diameter:19.05 x 235 mm(0.75" x 9.25:)
Customized Thread and Caps available.
