MMO/Ti Flexible Anode,Mixed Metal Oxide Titanium Flexible Anode

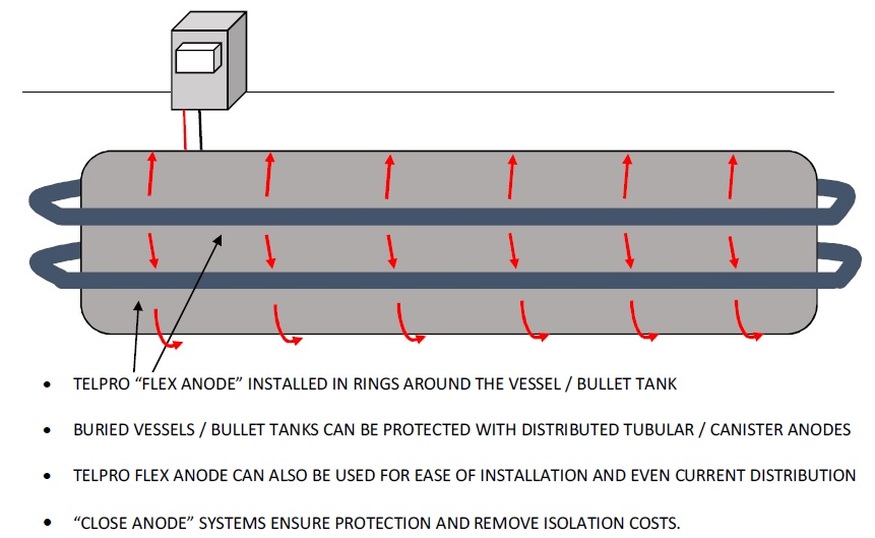

The Flexible Linear Anode For Impressed Current Cathodic
Protection,AnodeFlex Flexible Anode System
The design of a flexible anode can be divided into the following
four steps:
(1) First, determine the required protection current. The
protection current needs to be determined according to the
condition of the protection layer of the protection pipeline. The
density of the protection current can then be selected. The
required current can be obtained by multiplying the protection area
by the density of the current.
(2) The second is to design the loop, and to ensure that the
designed flexible anode loop can ensure the current distribution
throughout the length and ensure uniform distribution. The maximum
loop length can be calculated from the confluence point to obtain
the maximum length of the anode. . The subsequent current feed
point is calculated based on the maximum length of the loop.
(3) Select the appropriate power supply equipment specifications,
flexible anode also has its special place, its special place is
that the resistance between cathode and anode is very low, taking
into account the long conductor, we must use non-standard
calculation.
(4) The last step is to select the accessories. When selecting the
accessories of the flexible anode, the connection method should be
used as the basis. The best filler material for flexible anodes is
coke powder. When selecting coke powder, the carbon content should
be more than 85% and particle size less than 3mm.
Flexible anode polymer flexible anode | | mmo flexible anode |
impressed current cathodic protection
| Technical Parameters | TB39-52 |
| Anode Diameter | 39±2mm |
| MMO/Ti Anode Wire Diameter | ≥0.8mm |
| Anode Design Life | ≥40years |
| Anode Consumption (Including Filling) | ≤6mg/A.a |
| Output Current (Maximum) | 1500mA/m |
| Coating Thickness of Metal Oxide | ≥ 6g/m2 |
| Resistivity of Mixed Metal Oxides | 10-5Ω.cm |
| Contact Resistance of Anode and Cable Joint | ≤1.0 mΩ |
| Anode Resistance | ≤0.007Ω∕m |
| Content of Coke Breeze Filler | ≥ 98% |
| Coke Breeze Resistance | ≤0.55 Ω·cm |
| Fabric Jacket Tube | Anticorrosion,permeable |
| Fabric Jacket Mesh | Wearproof,anti environmental temperature variability |
| Anode Weight | ≥1.3kg/m |
| Anode Length(Each Unit) | 500m(or made to order) |
Company Brief Introduction:
We are a professional anode supplier over 16 years , also provide :
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* Magnesium anodes ( ASTM-G97)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
Our anodes are shipped worldwide especial main to North America,
Asia etc., around 5000mt per year. Our goods are regularly tested
by independent third party lab in USA to keep anode continuous high
quality. Our plant owns raw material resources ore, so we can
supply very good price with service for you.
We can also accept customized anodes with your logo according to
your drawing !
