99.9 High Purity Magnesium Alloy Plate 1mm Thickness Tooling Plate For Fixtures

Ask Lasest Price
Brand Name :	High Broad
Model Number :	99.9 mg
Certification :	ISO
Price :	discuss
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500MT per year
Delivery Time :	according to quantity

Add to Cart

Product Details
Company Profile

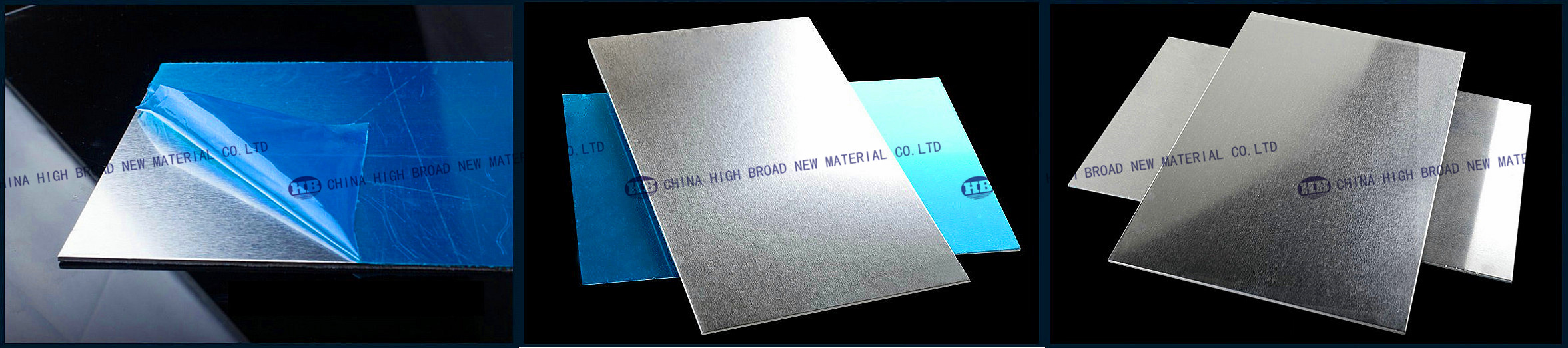

99.9 High Purity Magnesium Alloy Plate 1mm Thickness Tooling Plate For Fixtures

Pure Magnesium Plate 99.9

This standard covers magnesium tooling plate of one grade and quality offered for sale for use in jigs, fixtures, gauges and other applications.

Composition

Magnesium tooling plate is made to AZ31 composition shown in the Chemical Composition of Magnesium Tooling Plate table below. Tooling plate can be supplied to MIL-T-38749 on inquiry.

Chemical Composition of Magnesium Tooling Plate

Alloy

Cu max.

Fe max.

Ni max.

Si max.

Other imp. max.

AZ31

Bal.

2.5-3.5

0.04 max

0.20 min.

0.7-1.3

0.05

0.005

0.05

0.30

Properties

Typical mechanical properties os AZ31 tooling plate are shown in the table below. Minimum properties are not guaranteed.

Thickness, inches	TS, ksi	TYS, ksi	Elong. in 2″, %	CYS, ksi
0.250-6.000	35	19	10	10

Standard Sizes

Thickness	Size
.250, .375	48″x 96″	48″x 144″-	-
.500, .625, .750, 1.000	48″x 96″	48″x 144″	60″x 144″
1.250, 1.500, 1.750	48″x 96″	48″x 144″	60″x 144″
2.000, 2.500, 3.000	48″x 96″	48″x 144″	60″x 144″
3.500	48″x 96″	-	-
4.000	49″x 84″	-	-
5.000	49″x 72″	-	-
6.000	49″x 60″	-	-

Special Inquiries: For thicknesses over 6 inches, widths over 60 inches, and non-standard lenghts.

Tolerances

Thickness

Thickness – maximum variation in gauge within a plate ± 0.010 plate to plate variation
Specified thickness, inches	Tolerance ±, inches
0.250-0.750	0.010
0.751-1.250	0.017
1.251-2.000	0.025
2.001-3.000	0.050
3.001-3.250	0.065
3.251-3.500	0.080
3.701-4.000	0.110
4.001-5.000	0.125
5.001-6.000	0.135

Width and Length Tolerances

Specified thickness, inches	Specified width of length, inch
	Up thru 10	Over 10 thru 48	Over 48 thru 72	Over 72
	Tolerances, inch +
0.250-6.000	3/16	3/8	1/2	5/8

Flatness Tolerances

Specified thickness, inches	Deviation from flat*, inch
	In any 1 foot		In any 6 feet
	Guaranteed	Typical	Guaranteed	Typical
0.250-1.000 1.001	0.005 0.010	0.003 0.005	0.015 0.020	0.007 0.010

* Deviations from flat are measured from a straight edge placed on the surface of the plate.

Finish: The side suitable for tooling uses is stencilled. The opposite side is equal or superior to a mill finish.

Packing: Conforms to requirements of carrier through which shipment is made. Both domestic and export packing available.
