Brand Name :	High Broad/OEM
Model Number :	Magnesium anode Magnesium condenser anodes
Certification :	ASTM G-97, ISO, DNV
Price :	negotiable
Payment Terms :	D/P, L/C, T/T, Western Union, MoneyGram,Paypal etc
Supply Ability :	300mt per month
Delivery Time :	1days for 10tons

Add to Cart

Magnesium anode Magnesium condenser anodes

1. Product information

Application:

Magnesium condenser anodes are used in many different applications such as tank interiors, condenser water boxes, heat exchangers, etc.

These anodes are produced in a number of shapes, weightd and configurations to meet customer's requirements.

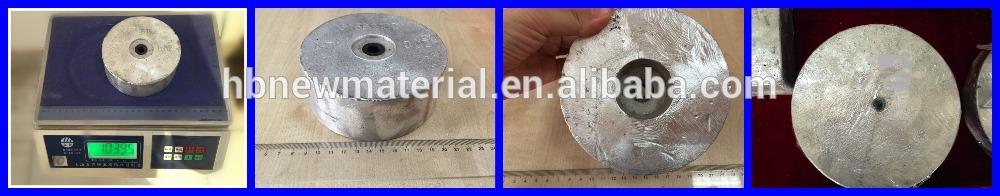

2. Anode detail image

magnesium condenser anode (11)_

We can surely produce anode as per your drawing !

Pls contact us for more details !

Standard: ASTM G-97

Chemical compositions of cast magnesium anode (%)
Element	High potential	AZ63B	AZ63C	AZ63D
Al	<0.01	5.30-6.70	5.30-6.70	5.0-7.0
Zn	---	2.50-3.50	2.50-3.50	2.0-4.0
Mn	0.5-1.30	0.15-0.70	0.15-0.07	0.15-0.70
Si (max)	0.05	0.10	0.30	0.30
Cu (max)	0.02	0.02	0.05	0.10
Ni (max)	0.001	0.002	0.003	0.003
Fe (max)	0.03	0.005	0.005	0.005
Others each	0.005	---	---	---
Others total	0.30	0.30	0.30	0.30
Mg	Balance	Balance	Balance	Balance

Specificantion of “S”shaped Mg sacrificed anodes

Model	Weight Kg (LB)	Specification of anodes Inch (mm)
Model	Weight Kg (LB)	A	B	C
3S3	1.4(3)	3(76.2)	3(76.2)	4.5(114.3)
5S3	2.3(5)	3(76.2)	3(76.2)	7.5(190.5)
9S2	4.1(9)	2(50.8)	2(50.8)	27(685.8)
17S2	7.7(17)	2(50.8)	2(50.8)	51(1295.4)
17S3	7.7(17)	3(76.2)	3(76.2)	25.5(647.7)
20S2	9.1(20)	2(50.8)	2(50.8)	60(1524.0)
32S3	14.5(32)	3(76.2)	3(76.2)	45(1143.0)
32S5	14.5(32)	5(127.0)	5(127.0)	21(533.4)
40S3	18.1(40)	3(76.2)	3(76.2)	60(1524.0)
48S5	21.8(48)	5(127.0)	5(127.0)	31(787.4)
60S4	27.2(60)	4(101.6)	4(101.6)	60(1524.0)
9S3	4.1(9)	3(76.2)	3(76.2)	13.5(342.9)

Specificantion of “D”shaped Mg sacrificed anodes

Model	Weight Kg (LB)	Specification of anodes Inch (mm)
Model	Weight Kg (LB)	A	B	C
9D2	4.082(9)	2 3/4(69.9)	3(76.2)	21 5/8(549.3)
14D2	6.350(14)	2 3/4(69.9)	3(76.2)	33 1/2(850.9)
20D2	9.072(20)	2 3/4(69.9)	3(76.2)	47 3/4(1212.9)
9D3	4.08(9)	3 1/2(88.9)	3 3/4(95.3)	13 7/8(352.4)
17D3	7.711(17)	3 1/2(88.9)	3 3/4(95.3)	25 1/4(641.4)
32D5	14.515(32)	5 1/2(139.7)	5 3/4(146.1)	19 7/8(504.8)
48D5	21.772(48)	5 1/2(139.7)	5 3/4(146.1)	30 1/8(765.2)
1.5Kg	1.5(3.5)	3 3/20(80.0)	2 3/4(70.0)	7 1/2(190.0)
2.5Kg	2.5(5.5)	3 3/20(80.0)	2 3/4(70.0)	11 4/5(300.0)

Model	Open-circuit voltage (-v)	Close-circuit voltage (-v)	actual capacitance (A.H/G)	Current efficiency (%)
Mg anode with low potential AZ63	1.50-1.55	1.45-1.5	≥1.105	≥50
Mg anode with high potential Mg-Mn	1.70-1.75	1.57-1.62	≥1.100	≥50
