Boron Carbide B4c Sandblasting Gun Nozzle for Sandblasting Cabinet

Venturi Boron Carbide Blast Nozzle , Sandblaster Parts Nozzle High Temperature Resistance

Boron carbide nozzle straight bore and venturi bore high temperature resistance boron carbide nozzle with aluminium jacket

Gas dynamic of venturi nozzle is better than straight-hole nozzle, the vortex is improved or ceased to exist, greatly reduced the pressure loss in the same pressure conditions. Abrasive exports increased to more than double the speed, efficiency than the straight-hole nozzle to increase 15% -40%, 20% lower abrasive consumption.

Abrasive blasting nozzles

Sand Blasting Boron Carbide Nozzle
High hardness, Low density, High temperature resistant, Excellent wear and anti-corrosion.

Sand Blasting Boron Carbide Nozzle

This kind of nozzle is made from boron carbide by hot pressing with straight bore and venturi bore type. Because of its hardness, low density, high temperature resistance, excellent wear and anti-corrosion, Boron Carbide Nozzle has been widely used in sandblasting and shot peening equipments, offering a longest life with optimum air and abrasive use.

Products application:

Equipped on the blasting machine and used as sand blasting.

Can be used to remove rust, water cutting etc.

Product features:

material : boron carbide
Density:>=2.48/cm3 .Microhardness>=3500kgf/mm2. Flexural strength>=400MPa
Melting point :2450℃

Advantages

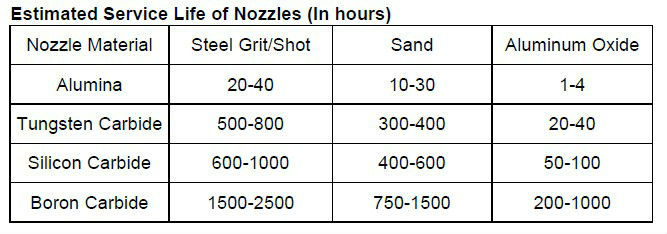

1. Longer service life. In terms of service life, boron carbide nozzle has the longest one such as for sand

blasting and shot peening.

2. Lower cost per use. Boron carbide costs more but will outlast tungsten carbide by 3 to 10times.

3. To reduce down time.

4. To maintain efficiency.
