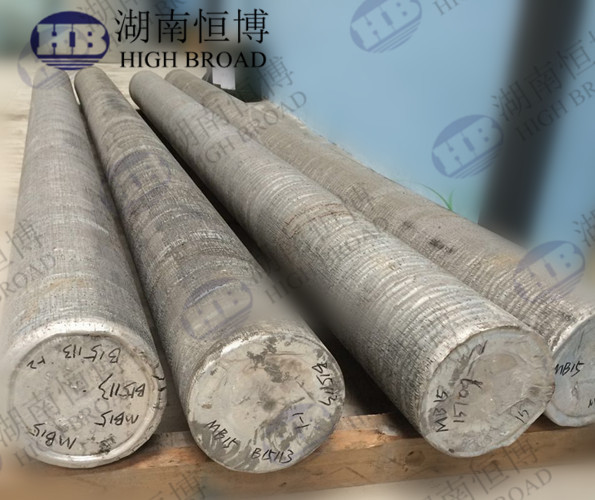

Dissolving Magnesium Billet with High Tensil Strength , Yeild
Strength
A biodegradable material widely used in the field of oil
extraction, underground tools sealed ball material, the use of
soluble magnesium alloy manufacturing fracturing construction
tools, tools in the work after the completion of their own work in
the underground ablation, and then mixed in the liquid through the
pipeline anti-discharge , Can be completely degraded, there is no
easy card astringent, blocking the channel problem, thus
eliminating the need for drilling recovery process, reduce the
project difficulty, improve the construction efficiency.
Purpose and scope of application
(1) Staged fracturing of horizontal wells is the main stimulation
measure for the development of low-permeability, unconventional oil
and gas resources.
(2) The main body of the all-metal soluble bridge plug is made of
high-strength soluble magnesium alloy, and the seal is made of
soluble alloy material, which is suitable for high temperature or
low temperature oil and gas wells. The sealing pressure bearing
performance exceeds 70MPa, and the dissolution rate after
fracturing is adjustable and controllable.
6 reasons to choose soluble fully decomposable bridge plugs 6
reasons to choose bridge plugs
(1) Exclusive customization: customized soluble bridge plugs can be
provided upon request;
(2) Staged fracturing: soluble bridge plug staged fracturing
technology;
(3) Technical satisfaction: technically meet 55℃-125℃, pressure
70MPa;
(4) Overall dissolvable: the overall dissolution time is 8-20 days;
(5) Duration of pressure resistance: the pressure resistance
(blocking) time is adjustable from 8 to 36 hours, and the
dissolution time is adjustable;
(6) Technical support: The technology has been verified by
examples.
Experimental steps:
1. Prepare experimental equipment, soluble ball, solute (HCL),
clean water, beaker, balance, vernier caliper Constant temperature
water bath
2. Check the appearance and size of the soluble ball, and take a
3. Prepare 20% HCL solution
4. Immerse the coating soluble ball in HCL solution
5. The constant temperature box maintains the HCL solution at a
certain temperature, and observes the acid corrosion resistance of
the soluble ball
6. Take out the soluble ball at intervals, check the appearance,
shape and size of the soluble ball, and record the soluble ball
weight, reconstitute the acid solution, continue to observe the
corrosion resistance of the soluble ball
We have other grade magnesium billets:
WE43
WE54
WE94
ZK60
AZ80
etc.
ONE-STOP SOLUTION
• A number of excellent production equipment.
• Mature process control.
• Advanced testing equipment.
• Excellent traceability system.
• Professional quality management personnel.
• Produced under the condition of non-oxygen casting and
electromagnetic stirring.
• The whole industry chain production mode.
• Quick R&D iterations of new recipes.
• Quick life cycle of production.
• Save your costs.
• Quick delivery from sufficient inventory.
