    AZ31 Magnesium Alloy Plate Engraving Magnesium Sheet For Embossing

    Ask Lasest Price
    Brand Name : High Broad
    Model Number : AZ31B
    Certification : ISO
    Price : negotiable
    Payment Terms : D/P, L/C, T/T, Western Union, MoneyGram,Paypal etc
    Supply Ability : 300mt per month
    Delivery Time : 1days for 10tons
    • Product Details
    • Company Profile

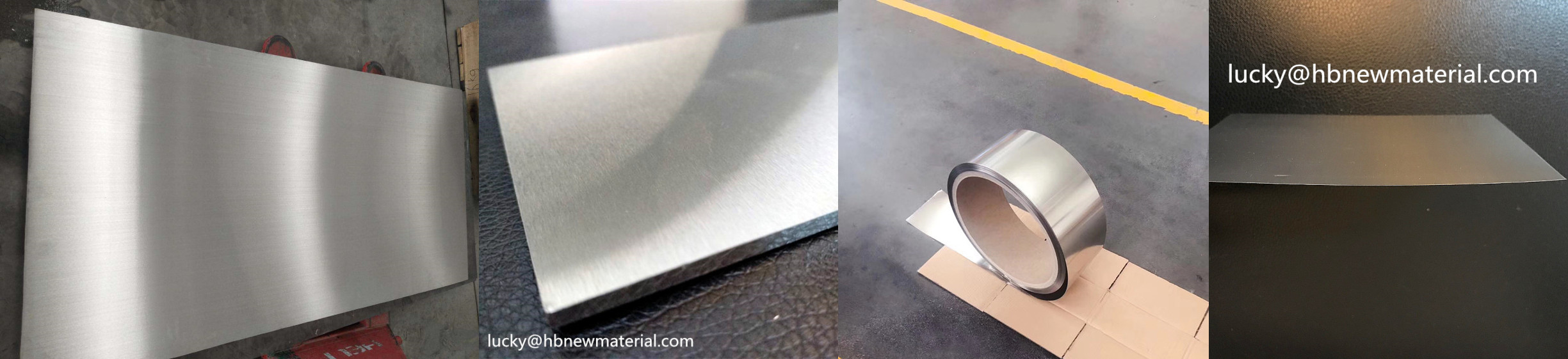

    AZ31 Magnesium Alloy Plate Engraving Magnesium Sheet For Embossing

    Engraving Magnesium sheet for embossing


    Magnesium CNC engraving Plate

    Type : AZ31B AZ91D ZK60A AZ61A AZ80A WE43B M1C M1A


    Size Range:

    Sheethickness from 0.6-180mm
    widthMax. 460mm
    lengthMax. 600mm

    Appalication: Printing, Foil stanping, Embossing, Flexography, Thermal dies, Rubber stamps.
    Advantage : faster, cleaner, user-friendly , quality control ( etching test of each lot goods before out of plant


    Magnesium alloy chemical composition
    Designation
    Main Chemical Composition
    Al
    Mn
    Zn
    Zr
    Y
    RE
    Mg
    AZ31B
    2.5-3.5
    0.2-1.0
    0.6-1.4
    -
    -
    -
    Balance

    Mechanical properties of magnesium alloy rolled sheet

    Designation
    Operating temp.
    (℃)
    Tensile strength (MPa)
    Yield strength (MPa)
    Extensibility
    (%)
    Modulus of elasticity
    (N/mm2)
    AZ31B
    ≤150
    290
    220
    15
    45

    AZ31B/AM60/AZ91/ZK60/WE43/WE54 magnesium alloy slab


    It is a wrought magnesium base alloy with good room-temperature strength and ductility combined with corrosion resistance and weldability. Increased strength is obtained by strain hardening with a subsequent partial anneal (H24 and H26 tempers).

    Magnesium slab/plate/sheetSize Range:


    Sheet: thickness from 1mm to 6mm; Max. width is 600mm; Max. length is 6000mm;

    Plate: thickness from 6 mm to 200mm; Max. width is 2500mm; Max. length is 6000mm;

    Block: We can supply cut-to-size blocks according to customer's requirements.

    Coil: thickness from 0.5 to 2.7mm, max. width 240mm;


    3.Magnesium slab/plate/sheet Application


    Sheet and plate find application in medium strength service at temperatures below 150°C. Diverse uses including aerospace, aircraft, concrete tools, 3C (cell phone / camera / computer), speaker cones and textile machinery can all benefit from light weight AZ31B.


    It is non-magnetic and has high electrical and thermal conductivity filling the requirements for RFI and EMI shielding in the electronics and computer industries.


    Superplastic forming of AZ31B sheet at elevated temperatures allows production of a wide variety of intricate parts for automotive uses. Monocoque construction utilizing formed sheet can be adapted to many commercial applications.


    Specification

    ASTM B90/B90M-07; AMS 4375; AMS 4376; AMS 4377


    CHEMICAL COMPOSITIONs

    Al: 2.5-3.5%; Zn: 0.7-1.3%; Mn: 0.20 – 1.0%; Mg: Balance


    PHYSICAL PROPERTIES


    Density: 1.78;

    Melting range: 566 - 632°C

    Coefficient of thermal expansion: 26.8 x 10-6K-1

    Specific heat: 1040 Jkg-1k-1

    Thermal conductivity: 76.9Wm-1k-1

    Electrical resistivity: 92nΩm

    Modulus of elasticity: 45 x 109Pa;

    Poissons ratio: 0.35;


    HEAT TREATMENT


    No thermal treatment is available for increasing the strength of this alloy after fabrication.


    MECHANICAL PROPERTIES


    The sheet and plate shall conform to the tensile requirements in above Table unless other agreement is made between seller and purchaser. Mechanical Properties for sizes and tempers not shown in above Table shall be as agreed upon by seller and purchaser.


    Alloy and TemperThickness (mm)

    Yield Strength

    0.2% offset (MPa)

    Tensile strength

    (MPa)

    Elongation

    In 5.65 √A (%)

    AZ31B-O0.5 – 1.512522110
    1.5 – 6.31052219
    6.3 - 751052218
    AZ31B-H240.5 – 6.32002695
    6.3 -9.51792627
    9.5 – 12.71652558
    12.7 - 251522488
    25- 501382346
    50 - 801242347
    AZ31B-H266.3 - 101862696
    10 – 12.51792626
    12.5 - 201722555
    20 – 251592555
    25 - 401522415
    40 - 501482415
