Magnesium Alloy Material Water Heater Anode Rod With Stainless Steel Plug NPT 3/4"

Ask Lasest Price
Brand Name :	HIGH BROAD
Model Number :	OEM Custom-made high quality
Certification :	ASTM G-97, ISO, DNV , ROHS
Price :	negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability :	300 Metric Ton/Metric Tons per Month
Delivery Time :	1 FCL:14 Days

Add to Cart

Product Details
Company Profile

Magnesium Alloy Material Water Heater Anode Rod With Stainless Steel Plug NPT 3/4"

water heater anode rod

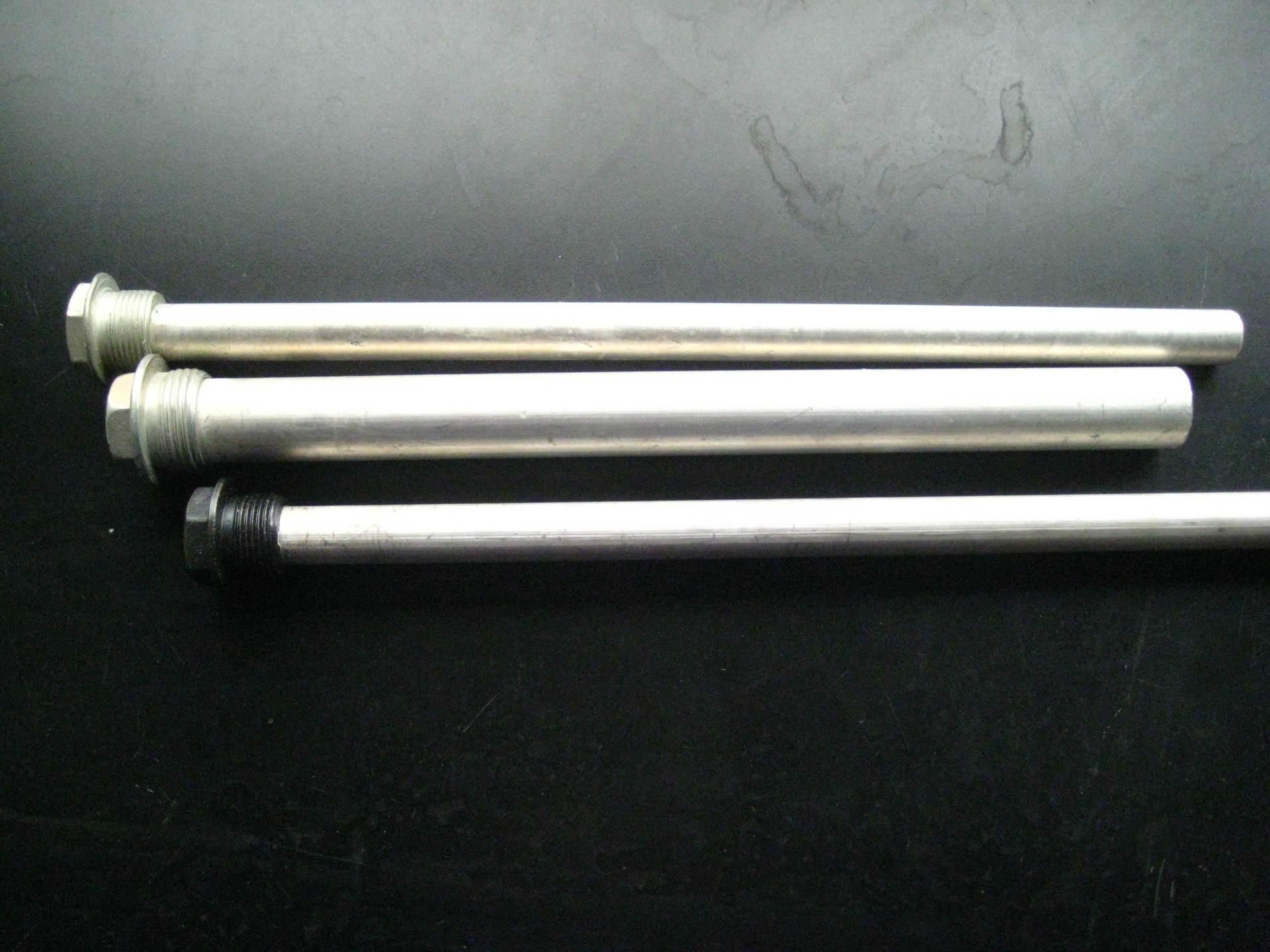

Magnesium anode rod for solar water heater steel tanks with stainless steel plug NPT 3/4"

Magnesium anode rods are the least expensive and create the lowest voltage during the sacrificial process. This means they will usually corrode at a slower rate than the other anode rods we offer. Actual water conditions will vary and have a direct effect on how quickly an anode rod corrodes and dissolves.

Water heater anode rod or sacrificial anode is the important component part with only one purpose to protect metal tank from corrosion.Extruded Alumnium anodes and Magnesium anodes have high current to weight ratio,are suitable to be used in where a small diameter anode is required to give enough cathodic current.

HIGH BROAD supply extruded anodes in both high potential (Mg-Mn alloy),standard potential (AZ31 alloy) and Alumnium Alloy.Our extruded anodes are typically suitable for all kinds of water storage tanks or in prepolarization of offshore structure and so on.

Specification

Alloy		AZ31B	Mg-Mn	Aluminum
Chemical Composition	Aluminum	2.50-3.50%	0.01% Max	Balance
	Manganese	0.20-1.00%	0.50-1.30%	- -
	Zinc	0.60-1.40%	- -	4.00-5.00% Max
	Calcium	0.04% Max	- -	- -
	Silicon	0.10% Max	- -	0.25% Max
	Copper	0.01% Max	0.02% Max	- -
	Nickel	0.001% Max	0.001% Max	- -
	Fe	0.005% Max	0.03% Max	0.25% Max
	Sn	--	- -	0.05-0.25% Max
	Other purity(each)	--	0.05% max	- -
	Total purity	0.30% Max	0.30% Max	0.15% Max
	Remaining	Magnesium	Magnesium

Dimension and Weight

Diameter(inch)	Core eccentric(inch)	Core diameter(inch)	Straightness(inch/2 ft length)	Weight(lbs/inch)
Magnesium Extruded rod
0.0675-0.020	0.050	0.135	0.060	0.025
0.750-0.020	1/16	0.135	0.040	0.031
0.800-0.020	1/16	0.135	0.040	0.035
0.840-0.020	1/16	0.135	0.040	0.038
0.900-0.020	1/16	0.135	0.040	0.043
1.050-0.020	1/16	0.135	0.040	0.057
1.315-0.020	1/16	0.135	0.040	0.089
Aluminum Extruded rod
0.576-0.020	0.050	0.135	0.060	0.038
0.750-0.020	1/16	0.135	0.050	0.048

Magnesium Alloy Material Water Heater Anode Rod With Stainless Steel Plug NPT 3/4"

Electric water heater anode rod direct factory price casting magnesium powered anode rod

Specifications
• Item name: Magnesium sacrificial anode
• The advantage: AZ63, High Potential (Mg-Mn) The best quality and best price.
• Raw materials: AZ31series,AZ63series and so on;

The characteristic of sacrificial anode magnesium
High electrochemistry performance
Average anode consuming
Long using time
High unit power output

Application field
Corrosion protection for
Electric water heater
Oil transportation and gas transmission in underground and fresh water
Line pipe for draining away water
Underground cable
Chemical industry
Communication
Dock and harbour
Boats and ships
Reservoir gate

Chemical Composition

Shop sign	Alloy element				Impurity element ,less than
Shop sign	Al	Zn	Mn	Mg	Fe	Cu	Ni	Si	Ca
AZ63	5.3-6.7	2.5-3.5	0.15-0.60	Balance	0.005	0.02	0.001	0.08	—
High Potential	≤ 0.05	≤ 0.03	1.20-2.0	Balance	0.005	0.02	0.001	0.08	0.04
MGM1C	≤0.01	—	0.50-1.3	Balance	0.01	0.01	0.001	0.05	—
MG	≤0.02	≤0.03	≤0.01	≥99.9%	0.005	0.004	0.001	0.01	—

Electrochemical Property

Shop sign	Open circuit potential	Closed circuit potential	Actual capacitance	Current efficiency
Shop sign	—V,Cu/CuSO4	—V,Cu/CuSO4	—(A·h/kg)	%
MGAZ63B	1.57-1.67	1.52-1.57	≥1210	≥55
High Potential	1.57-1.67	1.47-1.57	≥1210	≥55
MGM1C	1.77-1.82	1.64-1.69	≥1100	≥50

FAQ

Q. What do Magnesium sacrificial anodes do?

A.
The corrosion of metal in salt or fresh water or in soil can be prevented by the use of galvanic anodes in a cathodic protection system.

Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.

When the anode's cable is attached to a pipeline or other underground structure, a galvanic cell is created in which electrons flow from the anode to the structure, thereby protecting the structure.

The anode corrodes instead of the structure and must be replaced after a certain period of time that depends on the type of structure that is being protected, the size and grade of anodes that are used, and the corrosivity and resistivity of the surrounding soil.

In addition to pipelines, magnesium anodes are often used to protect propane, water and chemical storage tanks, areas of ships and port facilities that are not in direct contact with sea water, power plants and irrigation systems.

Q. Why choose us?

A. We are in cathodic protection anode market over 20 years.

Our products are strictly produced and tested as per American standard ASTM G97. The continuous and stable high quality products can save your cost!
