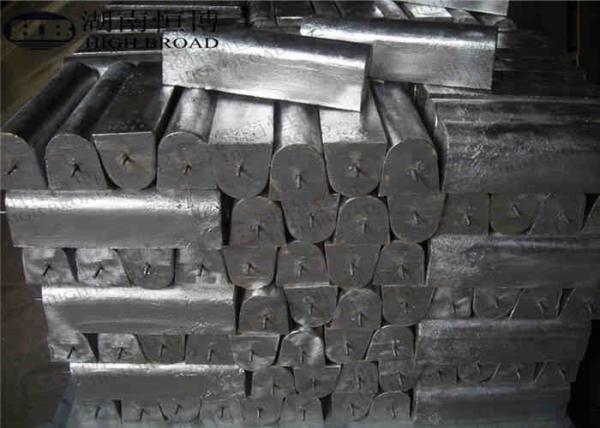

Professional Produce Magnesium Sacrificial Anode ASTM B843 / ASTM G97

High Potential sacrificial anode Mg Alloy ASTM B843 M1C Casting Magnesium Anodes

Corrosion protection packaged magnesium sacrificial anode

HB Magnesium anodes are produced in a variety of shapes and sizes for use in anti-corrosion protection of such projects are oil pipelines, gas pipelines, water supply pipes and drain-pipes, underground cables, chemical plants, communication, harbors, watercrafts and reservoir strobe.

Packaged Anodes are prepack in either bags or cardboard cartons in low resistivity,quick wetting, prepared backfill consisting of 75% hydratred gypsum, 20% bentonite, and 5% sodium sulphate. Connecting Wire: Standard 10 feet of solid or stranded #12 AWG Copper Lead Wire.

Specification

High Potential Magnesium anode is used as a sacrificial anode in cathodic protection. Magnesium has the highest driving voltage of all the materials used for sacrificial anodes. if it is placed within a system that uses large amounts water, it attracts the corrosion away from other components.

Our magnesium anode all manufactured and tested according to latest international standards, such as ASTM B843 and ASTM G97,It’s available from both M1C( high Potential)or AZ63B(standard Potential)magnesium anode.

Chemical compositions of High Potential Magnesium Anode :

Type

(Max)

Single impurity

(Max)

Total Impurity

(Max)

M1C

0.01

0.5-1.3

0.005

0.001

0.05

0.01

0.05

0.3

Remaining

Electrochemical properties of High Potential Magnesium Anode:

Type	Open-circuit voltage (-V)	Close-circuit voltage (-V)Zn	Actual capacitance (A·h/kg)	Current efficiency (%)
M1C	1.70-1.75	1.58-1.62	≥1100	≥50

Dimension and Weight

Item No.	"D" TYPE	High Potential(-1.7V)				Standard Potential(-1.5V)
Item No.	"D" TYPE	Nominal Width (mm)	Nominal Length (mm)	Nominal Height (mm)	Nominal Weight (kg)	Nominal Width (mm)	Nominal Length (mm)	Nominal Height (mm)	Nominal Weight (kg)
1	HB-MG-5D2	70	310	76	2.3	70	305	76	2.3
2	HB-MG-9D2	70	545	76	4.1	70	540	76	4.1
3	HB-MG-9D2-1	63.5	705	67	4.1	63.5	640	67	4.1
4	HB-MG-20D2	70	1524	76	9.1	70	1495	76	9.1
5	HB-MG-14D2	70	850	76	6.36	70	815	76	6.36
6	HB-MG-17D2	63.5	1210	67	7.7	63.5	1188	67	7.7
7	HB-MG-5D3	89	190	95	2.3	89	180	95	2.3
8	HB-MG-9D3	89	345	95	4.1	89	325	95	4.1
9	HB-MG-17D3	89	645	95	7.7	89	610	95	7.7
10	HB-MG-35D5	140	498	146	14.5	140	472	146	14.5
11	HB-MG-48D5	140	750	146	21.8	140	710	146	21.8
12	HB-MG-17D4	102	525	108	7.7
13	HB-MG-60D4	112	1524	112	27.3	114	1485	114	27.3

Item No.	"R" TYPE	Nominal Diameter (mm)	Nominal Length (mm)	Nominal Weight (kg)	Nominal Diameter (mm)	Nominal Length (mm)	Nominal Weight (kg)
1	HB-MG-R50	114	288	5.0	114	275	5.0
2	HB-MG-R77	114	440	7.7	114	410	7.7
3	HB-MG-R100	114	565	10.0	114	545	10.0
4	HB-MG-R145	146	405	14.5	146	475	14.5
5	HB-MG-R273	114	1524	27.3	114	1450	27.3

Item No.	‘S’ Type	High Potential(-1.7V)				Standard Potential(-1.5V)
1	HB-MG-3S3	86.25	120	76	1.4	86.25	115	76	1.4
2	HB-MG-5S3	86.25	204	76	2.3	86.25	198	76	2.3
3	HB-MG-9S3	86.25	365	76	4.1	86.25	345	76	4.1
4	HB-MG-17S3	86.25	680	76.2	7.7	86.25	650	76	7.7
5	HB-MG-32S5	117	563	127	14.5	117	535	127	14.5
6	HB-MG-48S5	117	845	127	21.8	117	820	127	21.8

We can do according to customized size and requirements.

Application

Corrosion protection for
Electric water heater
Oil transportation and gas transmission underground and in fresh water
Line pipe for draining water
Underground cable
Chemical industry
Communication
Dock and harbour
Boats and ships
Reservoir gate
